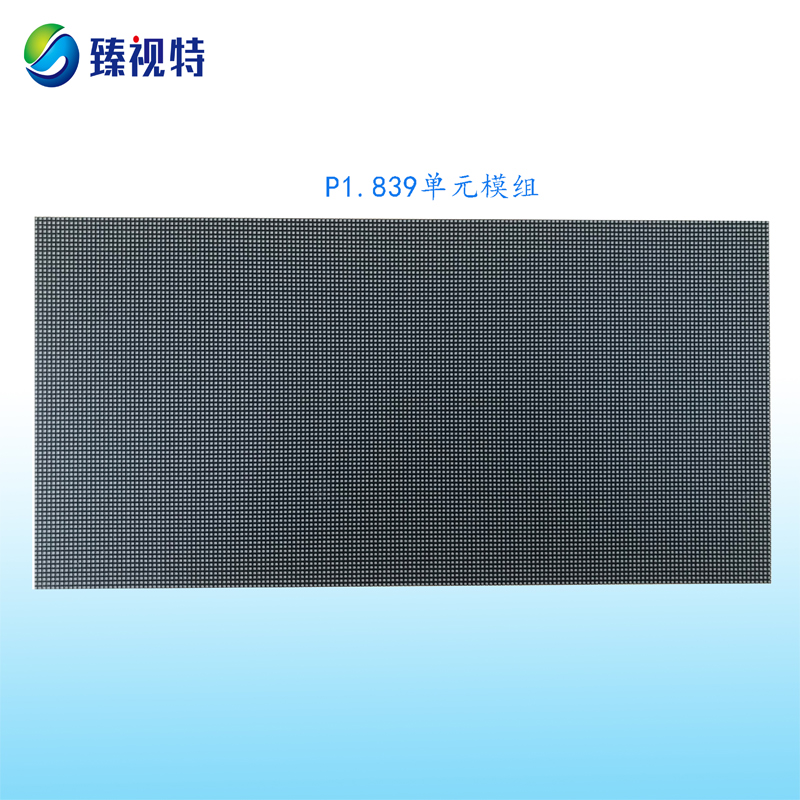

P1.839高清小間距
P1.839高清小間距
P1.839三合一表貼全彩
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH1.8)
※單元板參數 |
|||
技術參數 (Technical parameters) |
單位UNIT |
參數值( parameters values ) |
|
物理點間距 (Pixel pitch) |
MM |
1.839 |
|
模塊尺寸 (Panel size) |
MM |
L320*H160*T20 |
|
物理密度 (Physical density) |
/M2 |
295664 |
|
像素基色 (Pixel configuration) |
R/G/B |
1,1,1 |
|
驅動方式 (Driving method) |
|
1/29恒流掃描Constant current 1/29scan |
|
LED封裝方式(LED Encapsulation) |
SMD |
1515黑燈 |
|
顯示分辨率 (Display resolution) |
DOTS |
174X87=15138 |
|
模塊重量 (Module weight) |
KG |
0.20 |
|
模塊接口 (Module port) |
|
HUB-HD75(1) |
|
模塊工作電壓(Module working voltage) |
VDC |
5 |
|
模塊功耗 (Module consumption ) |
W |
25~30 |
|
※屏體參數 |
|||
模塊視角 (Viewing angle) |
Deg. |
140 度 |
|
最佳視距 (Option distance) |
M |
2-30 |
|
驅動器件 (Driving device) |
|
6353 |
|
每平米模塊數(Every square metre module) |
PCS |
19.5 |
|
最大功耗 (Maximum power) |
W/ M2 |
600 |
|
換幀頻率 (Frame Frequency) |
HZ/S |
≥60 |
|
刷新頻率 (Refresh frequency) |
HZ/S |
3300 |
|
白平衡亮度 (Equilibrium brightness) |
CD/ M2 |
600 |
|
工作環境溫度(Working environment temperature) |
0C |
-10~60 |
|
工作環境濕度(Working environment humidity) |
RH |
10%~70% |
|
屏體工作電壓 (Display working voltage) |
VAC |
AC47~63HZ,220V±15%/110V±15% |
|
白場色溫 (Colour temperature) |
|
7000K-11500K |
|
灰度/顏色 (Gray scale/color) |
|
≥16.7M color |
|
輸入信號 (Input signal) |
|
RF\ S-Video\ RGB etc |
|
控制系統 (Control system) |
|
PCTV非線性卡nonlinearity card,DVI顯卡Display card, Nova control system,諾瓦 |
|
平均無故障時間 (Mean free error time) |
HOURS |
>5000 |
|
壽命 (Life) |
HOURS |
100000 |
|
雜點率 (Lamp failure frequency) |
|
<0.0001 |
|
抗干擾 (Antijam) |
|
IEC801 |
|
安全 (Safety) |
|
GB4793 |
|
抗電擊 (Resist the electricity) |
|
1500V last 1min無擊穿及飛狐No breakdown |
|
屏體重量 ( Steel box weight) |
KG/ M2 |
40(標準箱體standard steel box) |
|
漏電電流 (Earth leakage current) |
mA |
|
|
IP等級 (IP rating) |
|
The back IP40,The front IP50 |
|
箱體尺寸(參考)(Steel box size) |
mm |
L640Xh480x80 |
